DiProtec® AB

Self-adhesive sealing tapes

Information

The brilliant sealing tape technology of DiProtec® AB waterproofing tapes allows waterproofing to be connected to GUTJAHR edge profiles in a reliable and uncomplicated way.

Advantages

  • DiProtec® AB-KV
    For waterproofing mineral sealing slurries at ProFin® edge profiles, in conjunction with a surface drainage mat.
  • DiProtec® AB-K
    For waterproofing the butt joints of the DiProtec® SDB
  • DiProtec® AB-V
    For waterproofing mineral sealing slurries at the ProFin® DP edge profile (without surface drainage mat)

Complete system

Produktaufbau WatecDrain KP+ | © Gutjahr Systemtechnik
1 DiProtec® SDB Quick sealing membrane
2

DiProtec AB-K plastic waterproofing tape
3

DiProtec AB-V fleece waterproofing tape

Brief technical information

Usage area: DiProtec® AB-K butyl waterproofing tape, plastic
- For waterproofing butt joints of DiProtec® SDB sheets in the surface
- For connecting to rising building components (plastered/filled wall surfaces; doors, windows etc.; ProFin® SP base board profile)
- For connecting to ProFin® DP and RA drainage and drip profiles

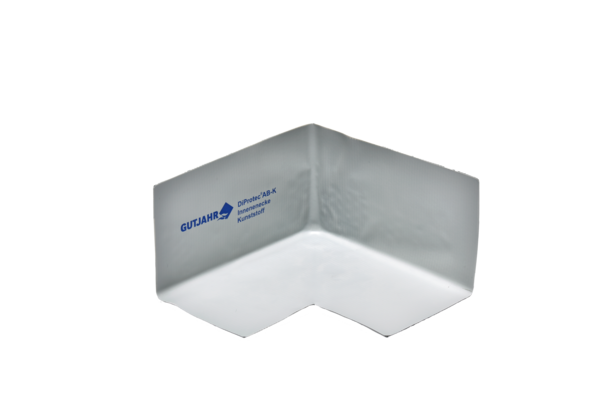

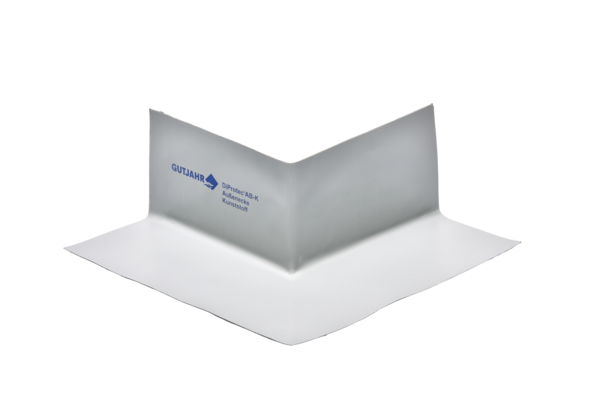

DiProtec® AB-K butyl inner and outer corner
For connecting to rising 90-degree corners

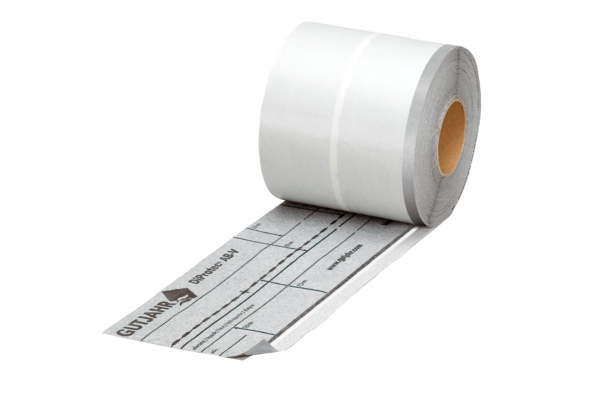

DiProtec® AB-V fleece waterproofing tape
As the adhesive carrier for adhesive mortar for providing the rising waterproofing of tiles and natural stone with mechanical protection
Material: AB-K: Butyl (self-adhesive) underneath; plastic on top
AB-KV: Butyl (self-adhesive) underneath; 75 mm synthetic / 75 mm fleece on top
AB-V: Butyl (self-adhesive) underneath; fleece on top
