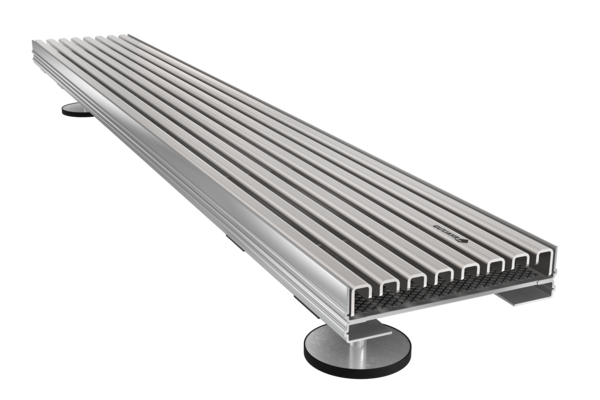

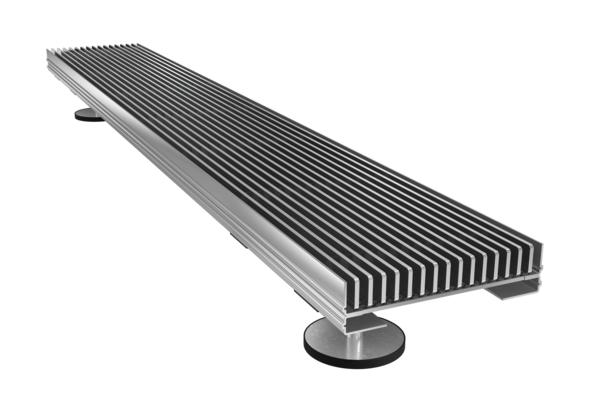

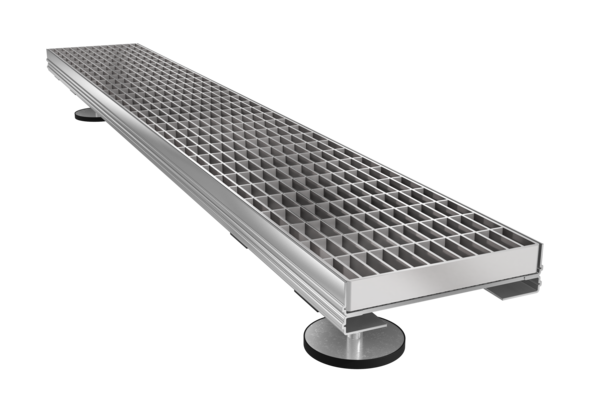

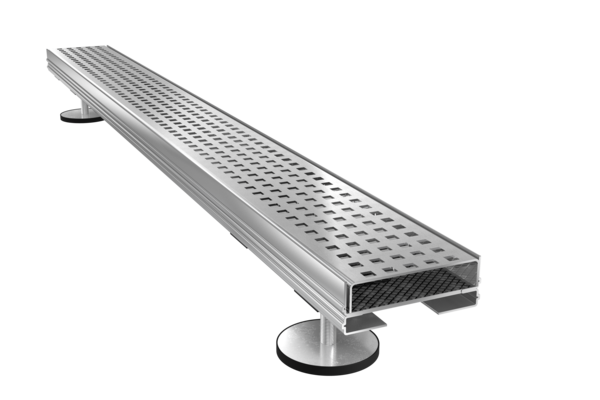

AquaDrain® FLEX drain grates guide surface water directly into the attached drainage. This helps to solve connection problems, even with low door / wall connections. Thanks to the adjustable sliding feet, AquaDrain® FLEX drain grates can be cut to the required individual length on site.
Advantages
-
Shortening saves time and money: simple and versatile, directly on the construction site.
Thanks to the two adjustable sliding feet and frame geometry. -
The integral dirt trap protects against fouling.
The trap prevents dirt from falling into the drain grate, therefore guaranteeing the long-term drainage performance of the drain grate and the drainage mat. - Simple, precise alignment at covering level using screw feet that can be continuously adjusted from above.
- Maximum drainage performance due to drain grate open at the bottom combined in a system with AquaDrain® drainage mats.
- Makes practical and standard-compliant reduction of the door threshold height from 15 to 5 cm possible.
Complete system

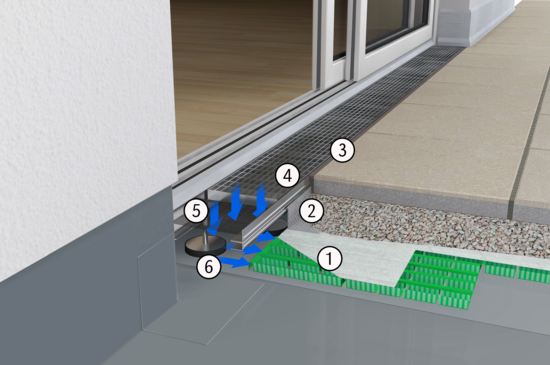

| 1 | AquaDrain® T+ Surface drainage systems |
| 2 |
AquaDrain® perforated angle bracket |
| 3 |
AquaDrain® SL waterstop |
| 4 | AquaDrain® FLEX Drain grate |
| 5 |
AquaDrain® dirt trap |
| 6 |
AquaDrain® FLEX two adjustable sliding feet with screw foot |
Brief technical information
| Area of application | In front of doors, floor-level window components or in line drainage |
| Frame material: | Hot-dip galvanised steel or stainless steel 1.4301 |
| Covers: |
Grid – hot-dip galvanised or stainless steel 1.4301 Square design – stainless steel Profile design – stainless steel Shadowline – stainless steel |
| Dirt trap: | Integral |
| Can be shortened: |
Can be shortened to the required length up to 400 mm (standard unit) or 280 mm (extension unit) |
| Height adjustment: |
GV: from 53–100 mm (or 83 mm before foot thread is cut off on site) with XL feet: from 60–175 mm (or 158 mm before foot thread is cut off on site) – at an extra charge with 2XL feet: from 66–290 mm (or 273 mm before foot thread is cut off on site) – at an extra charge GE: from 50–97 mm (or 80 mm before foot thread is cut off on site) with XL feet: from 57–172 mm (or 155 mm before foot thread is cut off on site) – at an extra charge with 2XL feet: from 63–287 mm (or 280 mm before foot thread is cut off on site) – at an extra charge PE: from 50–97 mm (or 80 mm before foot thread is cut off on site) with XL feet: from 57–172 mm (or 155 mm before foot thread is cut off on site) – at an extra charge with 2XL feet: from 63–287 mm (or 270 mm before foot thread is cut off on site) – at an extra charge QE: from 50–97 mm (or 65 mm before foot thread is cut off on site) with XL feet: from 57–172 mm (or 140 mm before foot thread is cut off on site) – at an extra charge with 2XL feet: from 63–287 mm (or 277 mm before foot thread is cut off on site) – at an extra charge SL: from 50–97 mm (or 80 mm before foot thread is cut off on site) with XL feet: from 57–172 mm (or 155 mm before foot thread is cut off on site) – at an extra charge with 2XL feet: from 63–287 mm (or 270 mm before foot thread is cut off on site) – at an extra charge BE: from 50–97 mm (or 80 mm before foot thread is cut off on site) with XL feet: from 57–172 mm (or 155 mm before foot thread is cut off on site) – at an extra charge with 2XL feet: from 63–287 mm (or 270 mm before foot thread is cut off on site) – at an extra charge |
