Information
With the TerraMaxx® laying procedure, unbreakable slabs are spot-bedded with the TerraMaxx® PF-FM special fixing compound to the AquaDrain® T+ surface drainage system. There is no need for water-retaining mortar layers. Seepage water is quickly removed via the AquaDrain® T+ drainage channels.
Advantages
- The covering is fixed, therefore no covering migration or wobbling.
-
Complete construction height of 31 mm upwards, including covering (20 mm thick).
Saves up to 70 % of the construction height; ideal for renovation. -
Up to +30 dB footfall noise improvement.
(Construction Acoustics Laboratory, University of Rhein-Main) - Up to 80 % weight reduction for quick, easy installation.
- Use in combination with AquaDrain® T+ guarantees rapid, permanent drainage of the covering structure.
- Can be implemented as a sealed-joint covering with MorTec® SOFT special joint.
- Arrangement of field edging joints for subdividing covering areas is not required in combination with MorTec® SOFT.
Complete system
1 | DiProtec® SDB Quick sealing membrane |
2 |
AquaDrain® TR reinforced separating layer |
3 | ProFin® DP30 Profile |
4 | DiProtec® AB Waterproofing tape |
5 | AquaDrain® T+ Surface drainage systems |
6 |
TerraMaxx® PF-FM special fixing compound |
7 | MorTec® SOFT the joint filler from the tube |
8 | AquaDrain® TM Drain grate |
9 | ProRin® BR Balcony gutter system |
Brief technical information
Area of application | Walk-on external surfaces in private and public areas, such as (roof) terraces and balconies. |
Types of covering |
Coverings such as those which are recommended by the covering manufacturer for the respective usage area and the respective type of covering laying are suitable. • Moisture-sensitive covering slabs (natural stone/concrete) must be checked with regard to longer-lasting discolouration due to spots of moisture formation on the surface of the covering. • The covering size is an edge length of ≥ 30 cm. |
Substrates |
• Bonded substrates,, concrete surfaces with or without waterproofing • Old tiles, old coverings • No direct laying onto rubble substrates |
Load-bearing capacity | Surface load capacity up to 2,000 kg/m²; cannot be driven on |
Footfall noise improvement | Up to +30 dB (T+ 8/16) |
Drainage performance |
AquaDrain® T+8 mm 100 % Fall= 5.04 l/(m*s) 10 % Fall= 1.51l/(m*s) 1.5 % Fall= 0.53 l/(m*s) AquaDrain® T+16 mm 100 % Fall= 10.33 l/(m*s) 10 % Fall= 3.16 l/(m*s) 1.5 % Fall= 1.17 l/(m*s) |
Insulation | Compressive strength ≥ 120 kPa |
Substrate gradients | ≥ 1.0 % to 2.5 % |
Components & accessories
Waterproofing
![](/_default_upload_bucket/4665/image-thumb__4665__system-components-slider/DiProtec_SDB_50050101SD_4180x4180.png)
![Produktbild DiProtec AB-KV Produktbild DiProtec AB-KV](/Bilder/Produktbilder/Abdichtung/798/image-thumb__798__system-components-slider/DiProtec_AB-KV_Dichtband_50050113AB.png)
![DiProtec KSK Kaltselbstklebebahn DiProtec KSK Kaltselbstklebebahn](/Bilder/Produktbilder/Abdichtung/1088/image-thumb__1088__system-components-slider/DiProtec_KSK_50010101KS_2020.png)
Drain grates
![](/Bilder/Produktbilder/Drainroste/2022/6605/image-thumb__6605__system-components-slider/AquaDrain_VARIO_QE_150mm_30030501VO.png)

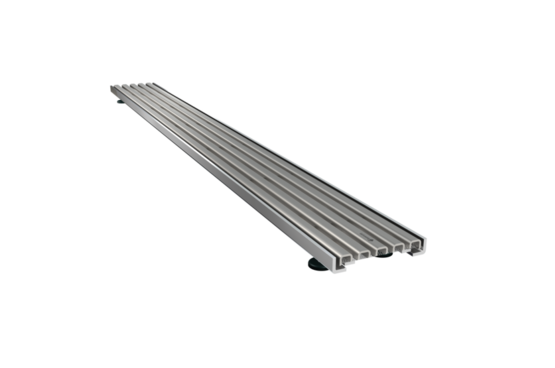

![AquaDrain TM Drainrost AquaDrain TM Drainrost](/Bilder/Produktbilder/Drainroste/1411/image-thumb__1411__system-components-slider/AquaDrain_TM_PE_30031302TM.png)
Drainage mats
![AquaDrain T+ Produktfoto AquaDrain T+ Produktfoto](/Bilder/Produktbilder/Drainage/1337/image-thumb__1337__system-components-slider/AqauDrain_T-_10070108TT_10070116TT_Welle.png)

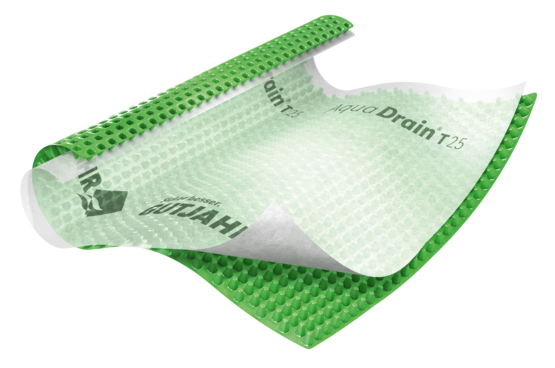

![Produktbild AquaDrain T25 | © Gutjahr Systemtechnik Produktbild AquaDrain T25 | © Gutjahr Systemtechnik](/Bilder/Produktbilder/Drainage/270/image-thumb__270__system-components-slider/AquaDrain_T25_10070125TT.png)
![Produktbild AquaDrain HU | © Gutjahr Systemtechnik Produktbild AquaDrain HU | © Gutjahr Systemtechnik](/Bilder/Produktbilder/Drainage/264/image-thumb__264__system-components-slider/AquaDrain_HU_10120216HU.png)
Edge profile
![](/Bilder/Produktbilder/Profile/1083/image-thumb__1083__system-components-slider/ProFin_DP_BL_Profil_Blende_alumetallic.png)
![](/Bilder/Produktbilder/Profile/944/image-thumb__944__system-components-slider/ProFin_DP30_Profil_alu_20040503DP.png)

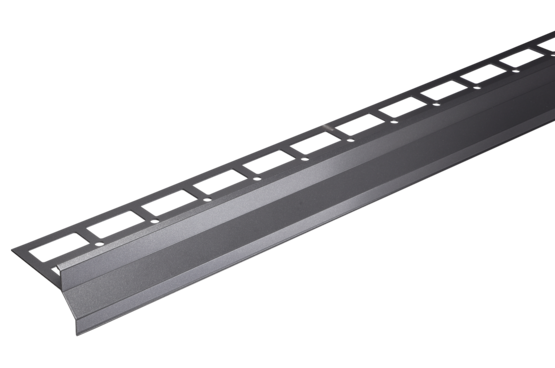

![ProFin V22 anthrazit Profistange ProFin V22 anthrazit Profistange](/Bilder/Produktbilder/Profile/1457/image-thumb__1457__system-components-slider/ProFin_V22_Profil_anthrazit_20073102TM_gespiegelt.png)
