AquaDrain® T+
Capillary passive surface drainage for coverings on gravel / chippingsInformation
AquaDrain® T+ provides quick and permanent drainage of the covering structure. It prevents fouling and silt formation, which often occur with loosely laid coverings.
Advantages
-
Special fleece with low through-flow resistance.
Ensures quick drainage of seepage water and avoids fouling on the waterproofing. -
The best drainage results.
In comparison to other standard drainage mats (German Institute for Textile Construction and Environmental Technology (tBU) Greven). -
Anti-capillary function provides reliable protection.
Proven to eliminate frost damage, efflorescence and moisture stains caused by accumulated water (Research by German Materials Testing Institute (MPA), Darmstadt). -
Damage-free since its introduction in 1987.
At up to 25 mm, AquaDrain® T+ raises the surface higher than any other drainage mat and keeps its anti-capillary function, even if there are puddles of water on the waterproofing. -
Up to +33 dB footfall noise improvement.
(Research by Construction Acoustics Laboratory, University of Rhine-Main). - The contact area of 66 % provides favourable load distribution with no high point loads.
- 6 year warranty for specialist companies.
Complete system
1 | DiProtec® SDB Quick sealing membrane |
2 | ProFin® DP & ProFin® BL Profile and panel |
3 | DiProtec® AB Waterproofing tape |
4 |
AquaDrain® TR reinforced separating layer |
5 | AquaDrain® T+ Surface drainage systems |
6 |
AquaDrain® perforated angle bracket |
7 |
Gravel / chippings |
8 | AquaDrain® FLEX Drain grate |
9 | ProRin® BR Balcony gutter system |
Brief technical information
Einsatzbereich
Begehbare Außenflächen in privaten und öffentlichen Bereichen, wie z. B. (Dach)-Terrassen und Balkone.
Belagsarten
Geeignet sind Beläge, wie sie vom Belaghersteller für den jeweiligen Anwendungsbereich und die jeweilige Art der Belagverlegung ausgelobt sind.
Untergründe
- Gebundene Untergründe, Betonflächen mit oder ohne Abdichtung
- Alte Fliesen, alte Beschichtungen
Untergrundgefälle
≥ 1,0 % bis 2,5 %
Dämmungen
Druckbelastbarkeit ≥ 120 kPa
Trittschallverbesserung
Bis zu +33 dB
Entwässerungsleistung
Gefälle | 100 % | 10 % | 1,5 % | |
AquaDrain® T+ 8 mm | 5,04 | 1,51 | 0,53 | l/(m*s) |
AquaDrain® T+ 16 mm | 10,33 | 3,16 | 1,17 | l/(m*s) |
Belastbarkeit
Flächig belastbar bis 2.000 kg/m²; nicht befahrbar
Material
PP
Videos
AquaDrain T+ Flächendrainage
Die AquaDrain T Flächendrainage schützt die lose verlegten Natursteine auf Balkone vor Schäden. Hier anschaulich in 5:54 Minuten erklärt....
Die AquaDrain T Flächendrainage schützt die lose verlegten Natursteine auf Balkone vor Schäden. Hier anschaulich in 5:54 Minuten erklärt....
Components & accessories
Drainage system accessories

Verlegezubehör

Drain grates



Waterproofing


Downloads
technical data sheets
Planning details
Tender texts
Products from GUTJAHR
Get a display of the right product
per product category:
per product category:
- Adhesive/mortar
- Balcony gutters and downpipes
- Drain grates
- Drainage mats
- Drainage system accessories
- Edge profile
- Supported systems
- Verlegezubehör
- Waterproofing
- Decoupling
- Interior accessories
- Shower gullies
- Underfloor heating
- Verlegezubehör
- Select your trade:
- Floorers
- Gardening and landscaping
- Roofers
- Tilers

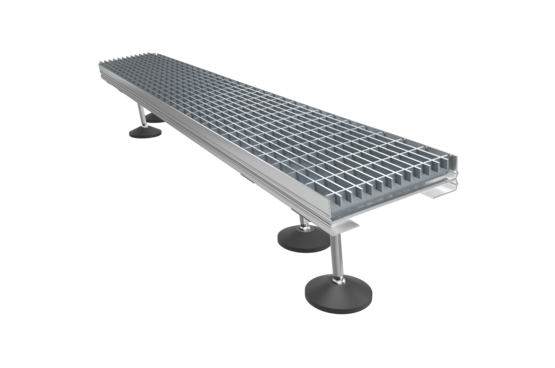

AquaDrain® BF-FLEX
