Information

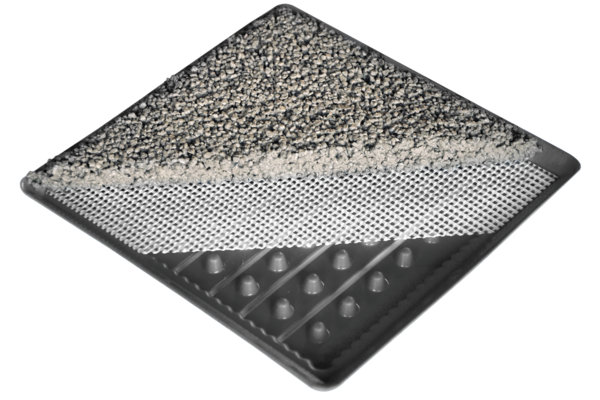

TerraMaxx® DS is the first capillary passive drainage system with raised floor supports. Loose-laid tiles are spot-bedded using MorTec® DRAIN-ZE cement-based drainage mortar on TerraMaxx® DS mortar. Capillary rising water is avoided by the 100% raising of the drainage mortar on TerraMaxx® DS. Height adjustment rings make easy laying possible – even on uneven waterproofing.
Advantages
-
The first anti-capillary, draining raised floor support system:
Unlike conventional raised floor supports / mortar spots, efflorescence and damp stains in the covering area of concrete and natural stone are reduced. - Reliable to use, even with accumulated water on the waterproofing.
-
Reliable installation of the overall system:
Easy alignment, e.g. on uneven waterproofing, thanks to the height adjustment ring. -
No wobbling coverings:
Thanks to laying the coverings on TerraMaxx® DS with MorTec® DRAIN-ZE cement-based drainage mortar. -
Footfall noise improvement of up to + 32 dB.
(Research by Construction Acoustics Laboratory, University of Rhine-Main).
Complete system
1 | DiProtec® SDB Quick sealing membrane |
2 |
AquaDrain® TR reinforced separating layer |
3 |
TerraMaxx DS |
4 | MorTec® DRAIN-ZE Drainage mortar |
5 | TerraMaxx® PF-FM Fixing compound as adhesive/contact layer |
6 |
Natural stone/concrete paving, ceramic elements |
7 | AquaDrain® FLEX Drain grate |
8 | MorTec® SOFT the joint filler from the tube |
Brief technical information
Area of application | Walk-on external surfaces in private and public areas such as (roof) terraces and balconies. |
Types of covering |
Coverings such as those provided by the covering manufacturer for the respective usage area and the respective type of covering laying are suitable. • Moisture-sensitive covering slabs (natural stone/concrete) must be checked with regard to longer-lasting discolouration due to spots of moisture formation on the surface of the covering. • The covering size is an edge length of ≥ 30 cm. |
Substrates |
• Bonded substrates, concrete surfaces with or without waterproofing • Unbonded, ground contact substrates with delayed seeping capacity (e. g. levelled gravel, vibrated and compacted surfaces) |
Load-bearing capacity |
• Max. static load-bearing capacity of up to 600 kg per drain raised floor support (when using factory-prepared dry mortar with a grain size of 2.5 – 5.0 mm, at least 30 mm thick) • Cannot be driven over |
Insulation | Compressive strength ≥ 150 kPa |
Substrate gradients | ≥ 1.0 % to 2.5 % |
Footfall noise improvement | Up to +32dB |
Components & accessories
Waterproofing
![](/_default_upload_bucket/4665/image-thumb__4665__system-components-slider/DiProtec_SDB_50050101SD_4180x4180.png)
![Produktbild DiProtec AB-KV Produktbild DiProtec AB-KV](/Bilder/Produktbilder/Abdichtung/798/image-thumb__798__system-components-slider/DiProtec_AB-KV_Dichtband_50050113AB.png)
![DiProtec KSK Kaltselbstklebebahn DiProtec KSK Kaltselbstklebebahn](/Bilder/Produktbilder/Abdichtung/1088/image-thumb__1088__system-components-slider/DiProtec_KSK_50010101KS_2020.png)
Drain grates
![](/Bilder/Produktbilder/Drainroste/2022/6573/image-thumb__6573__system-components-slider/AquaDrain_BF-Flex_GE_150mm_30030801FR_30030802FR.png)
![](/Bilder/Produktbilder/Drainroste/2022/6580/image-thumb__6580__system-components-slider/AquaDrain_FLEX_SL_150mm_30033401FR_30033402FR.png)
![Produktbild AquaDrain DR Produktbild AquaDrain DR](/Bilder/Produktbilder/Drainroste/841/image-thumb__841__system-components-slider/AquaDrain_DR-SL_33310301DR_33310302DR.png)
![](/Bilder/Produktbilder/Drainroste/2022/6605/image-thumb__6605__system-components-slider/AquaDrain_VARIO_QE_150mm_30030501VO.png)
