ProFin® RS/RS-H

Edge profiles made from powder-coated aluminium which can be both shortened and extended

Informations

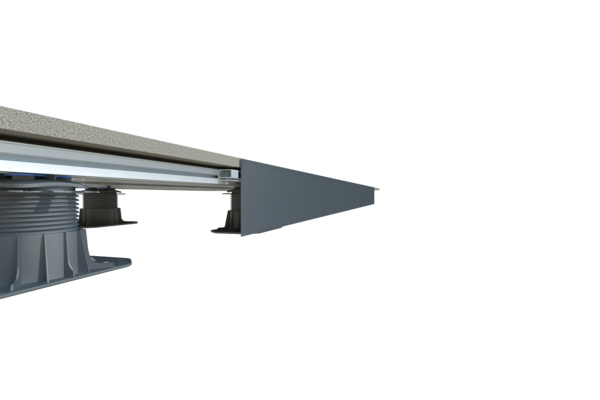

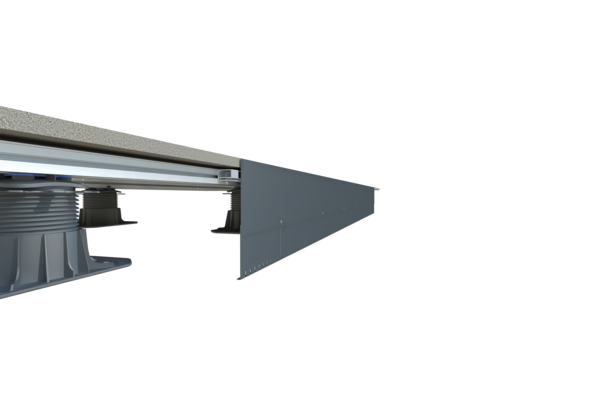

For manufacturing elegant vertical covering ends of exterior surfaces which have been laid onto the TerraMaxx® RS aluminium frame system. The ProFin® RS edge profile is available in anthracite metallic colour. The new edge profile has been developed for quick and easy covering of the TerraMax RS aluminium frame system. All that is you need to do is screw the profile holder to the frame system. Then the profile can be simply fitted. The reversible profile holder can be used for coverings that are 20 or 30 mm thick. Two covering thickness can be covered by simply turning. ProFin® RS-H, a height-adjustable profile cover, has also been added to the product range. Construction heights of 170 to 265 mm can be covered with this without problems.

Avantages

  • Functionality and design in aluminium
  • Developed for the TerraMaxx® RS aluminium frame system
  • Easy processing
    Thanks to the cutting marks on the back of the profile
  • Easy installation directly on the edge profile
    - No drilling required

Système complet

Brèves informations techniques

Material: Aluminium with powder coated visible sides
Usage area: Edge profile for direct attachment to TerraMaxx® RS aluminium frame profiles
Profile heights: ProFin® RS: 170 mm
ProFin® RS-H: 170 to 265 mm
System accessories: - ProFin® RS profile holder
- ProFin® RS profile connector
- ProFin® RS 90° outer corner
